976nm Fiber Coupled Laser Wholesale

976nm Fiber Coupled Laser

Overview

The 976nm Fiber Coupled Laser series covers 25–750 W of fiber-delivered pump power for Yb-doped fiber lasers and amplifiers. Both wavelength-stabilised and broad-spectrum variants are available, so the choice comes down to how tightly your gain medium needs the pump held on the 976 nm absorption peak.

Power & fiber — 25–750 W across the series; 105, 135, 200 or 220 µm core, fiber NA 0.22, SMA905 or pigtail output
Wavelength-stabilised variants — 975.5–976.5 nm, 0.8 nm FWHM, 0.02 nm/°C drift; stable locking above 5–10 A at 20–24 °C
Broad-spectrum variants — 973–979 nm, 5–6 nm FWHM, 0.3–0.4 nm/°C drift, wider spectral tolerance
Drive & protection — 48–50% electro-optical efficiency, 1030–1200 nm return-light isolation
Cooling — conduction cooled; 20–25 °C coolant temperature required

Tell us the gain medium, target pump power and fiber interface, and we will confirm the matching model and release its full specification.

Used in: laser pumping and PV inspection.

Contact Our Team

Descriptions

This 976 nm fiber-coupled diode laser family provides high optical power, compact packaging, and stable fiber delivery for demanding pump and industrial systems. Multiple power, fiber-core, and output-termination options allow the module to be matched to different integration and brightness requirements.

Key Features

High environmental adaptability
Efficient conductive heat dissipation
Compact, lightweight package design
High power density and stable optical output
Long operating life
Multiple power, fiber, and termination options
Custom configurations available

Applications

Fiber laser pumping
Solid-state laser pumping
Industrial laser systems
Laser illumination
Photoelectric detection

Key Parameters by Product Code

Each product image and dimension drawing is paired with the exact model specification shown in the same table. Select the required power, fiber core, and output termination before confirming the mechanical interface.

976-LXGX0025

Lumexis Product Code	976-LXGX0025
Nominal Output Power	25 W
Fiber Core Diameter	105 µm
Output Termination	SMA905
Product Image

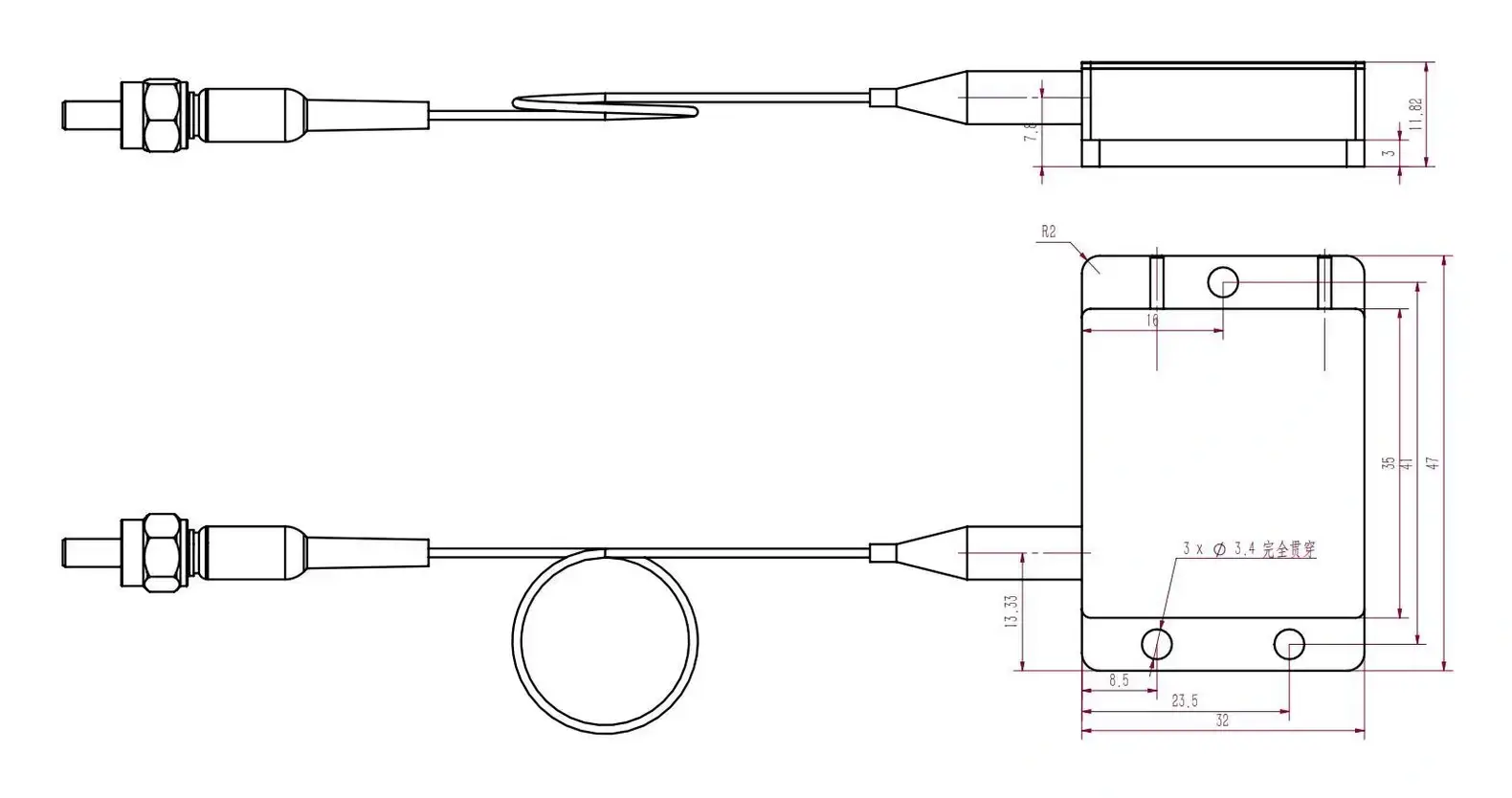

Dimension Drawing

976-LXGX0120

Lumexis Product Code	976-LXGX0120
Nominal Output Power	120 W
Fiber Core Diameter	105 µm
Output Termination	Pigtail output
Product Image

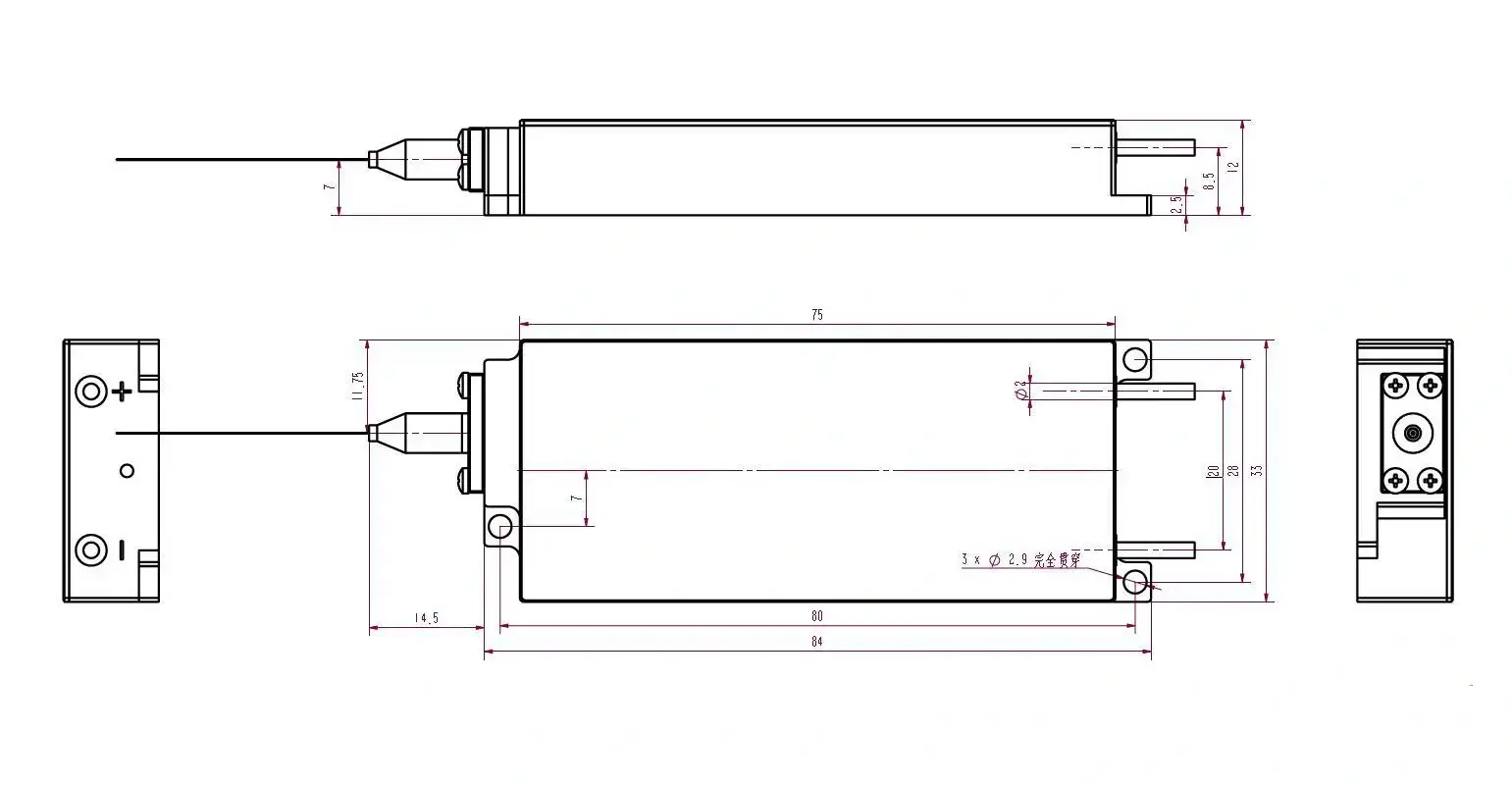

Dimension Drawing

976-LXGX0140

Lumexis Product Code	976-LXGX0140
Nominal Output Power	140 W
Fiber Core Diameter	105 µm
Output Termination	Bare-fiber output

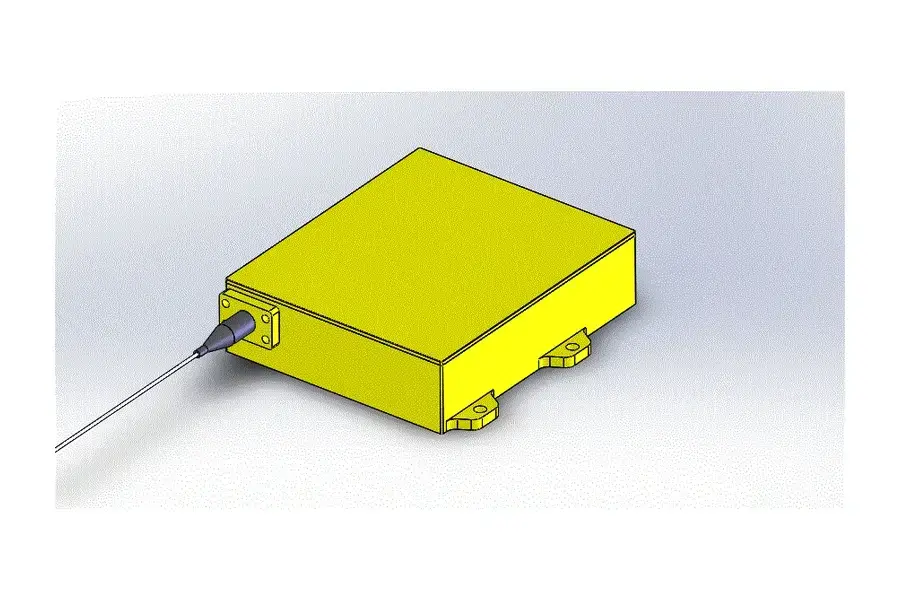

Product Image
Dimension Drawing

976-LXGX0260

Lumexis Product Code	976-LXGX0260
Nominal Output Power	Min 260; Typ 270 W
Fiber Core Diameter	135 µm
Output Termination	Pigtail output

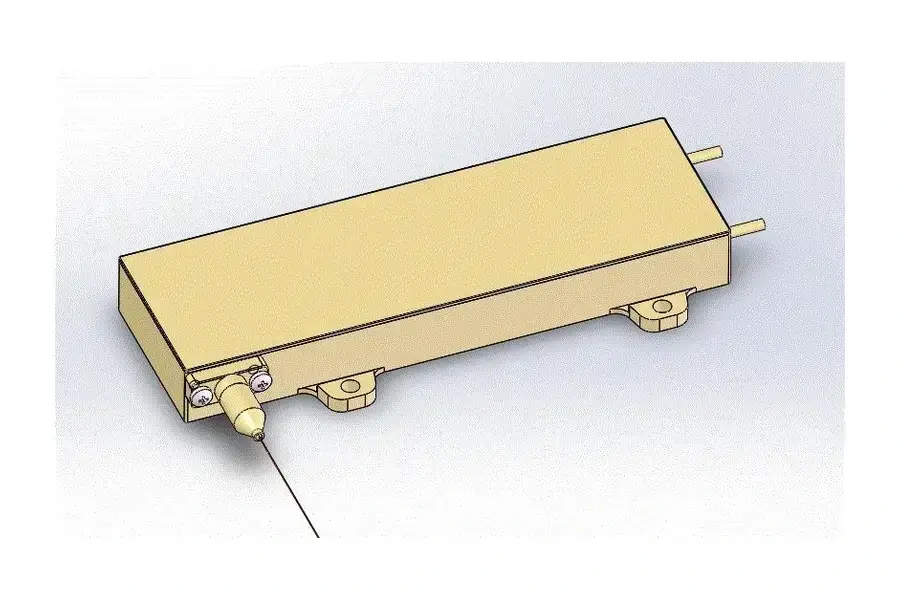

Product Image

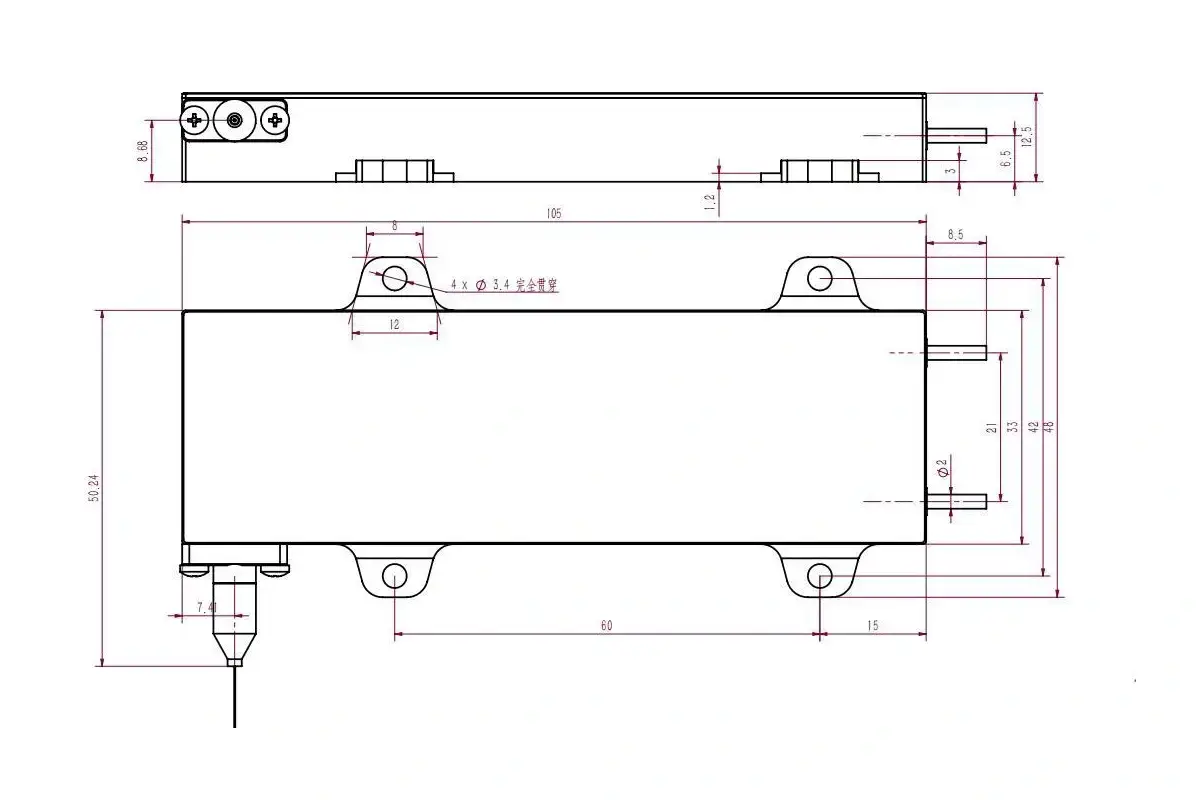

Dimension Drawing

976-LXGX0280

Lumexis Product Code	976-LXGX0280
Nominal Output Power	280 W
Fiber Core Diameter	Min 132; Typ 135; Max 138 µm
Output Termination	SMA905/Pigtail output
Product Image
Dimension Drawing

976-LXGX0360

Lumexis Product Code	976-LXGX0360
Nominal Output Power	Min 355; Typ 360 W
Fiber Core Diameter	Min 196; Typ 200; Max 204 µm
Output Termination	SMA905/Pigtail output
Product Image

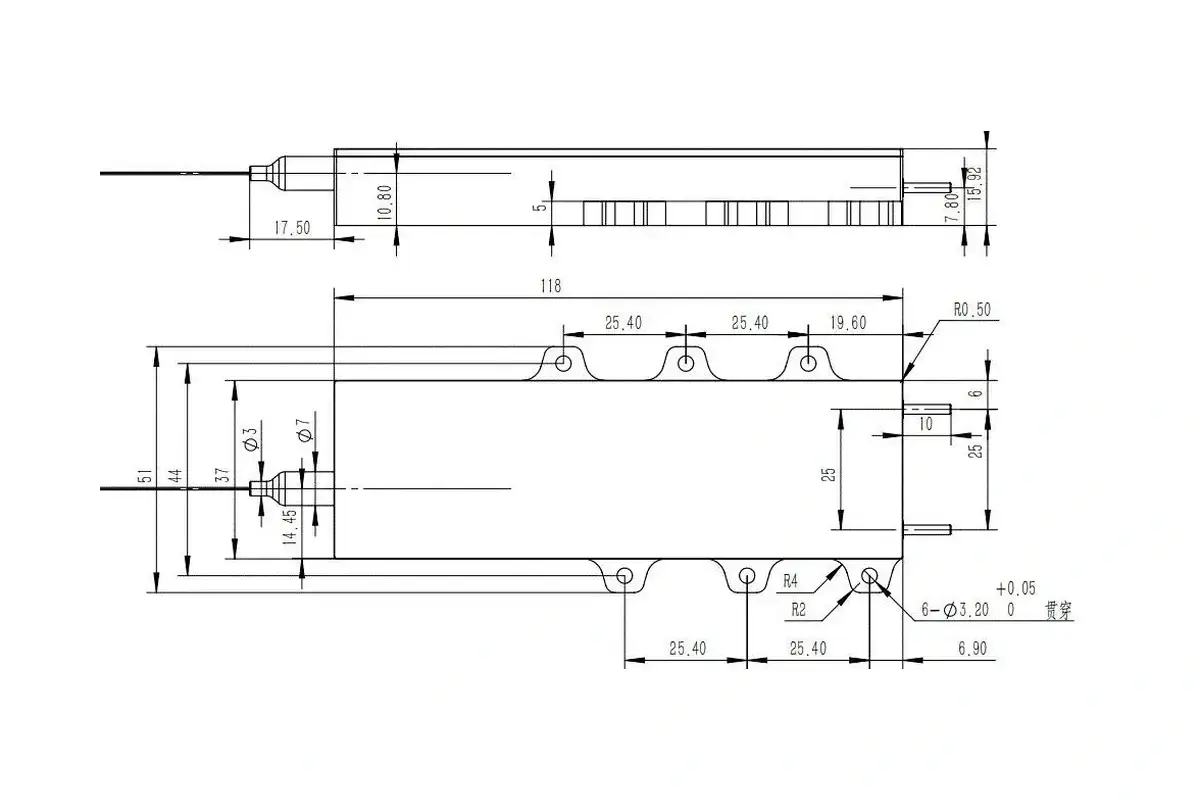

Dimension Drawing

976-LXGX0510

Lumexis Product Code	976-LXGX0510
Nominal Output Power	510 W
Fiber Core Diameter	220 µm
Output Termination	Pigtail output
Product Image

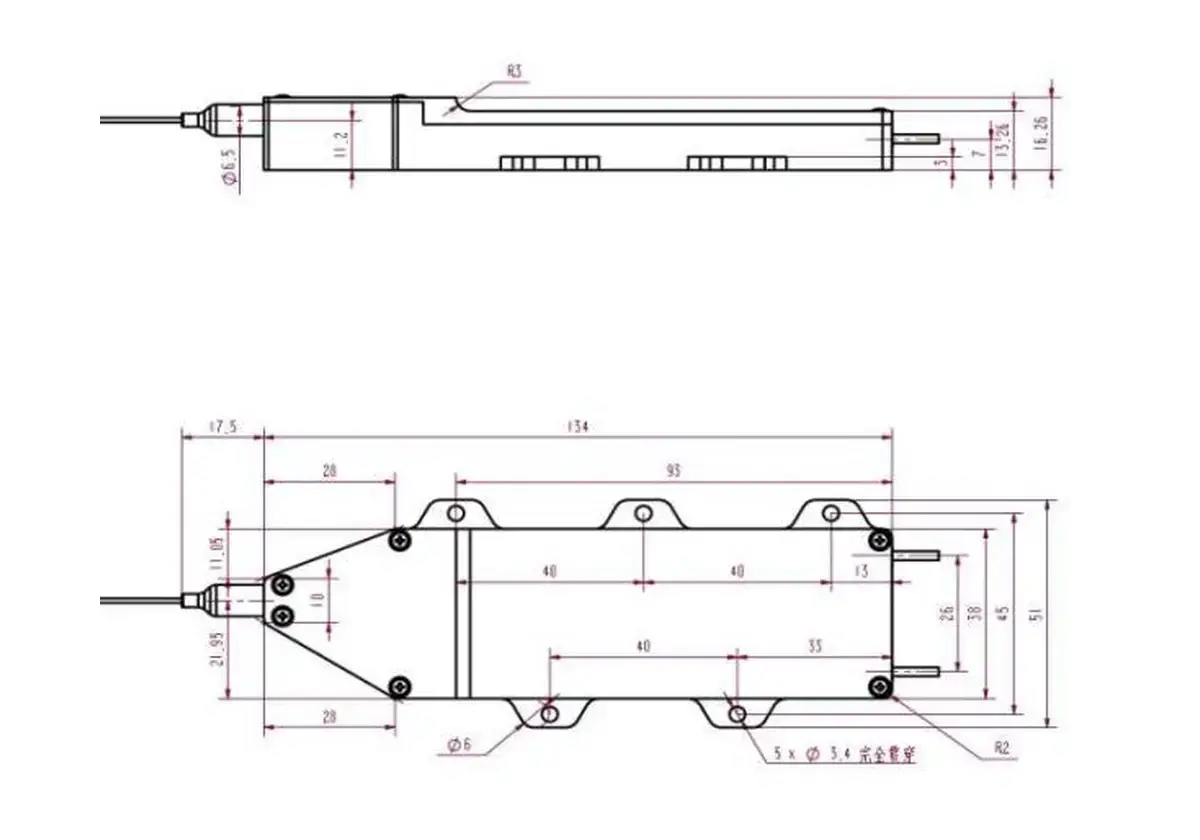

Dimension Drawing

976-LXGX0510

Lumexis Product Code	976-LXGX0510
Nominal Output Power	510 W
Fiber Core Diameter	220 µm
Output Termination	SMA905/Pigtail output
Product Image

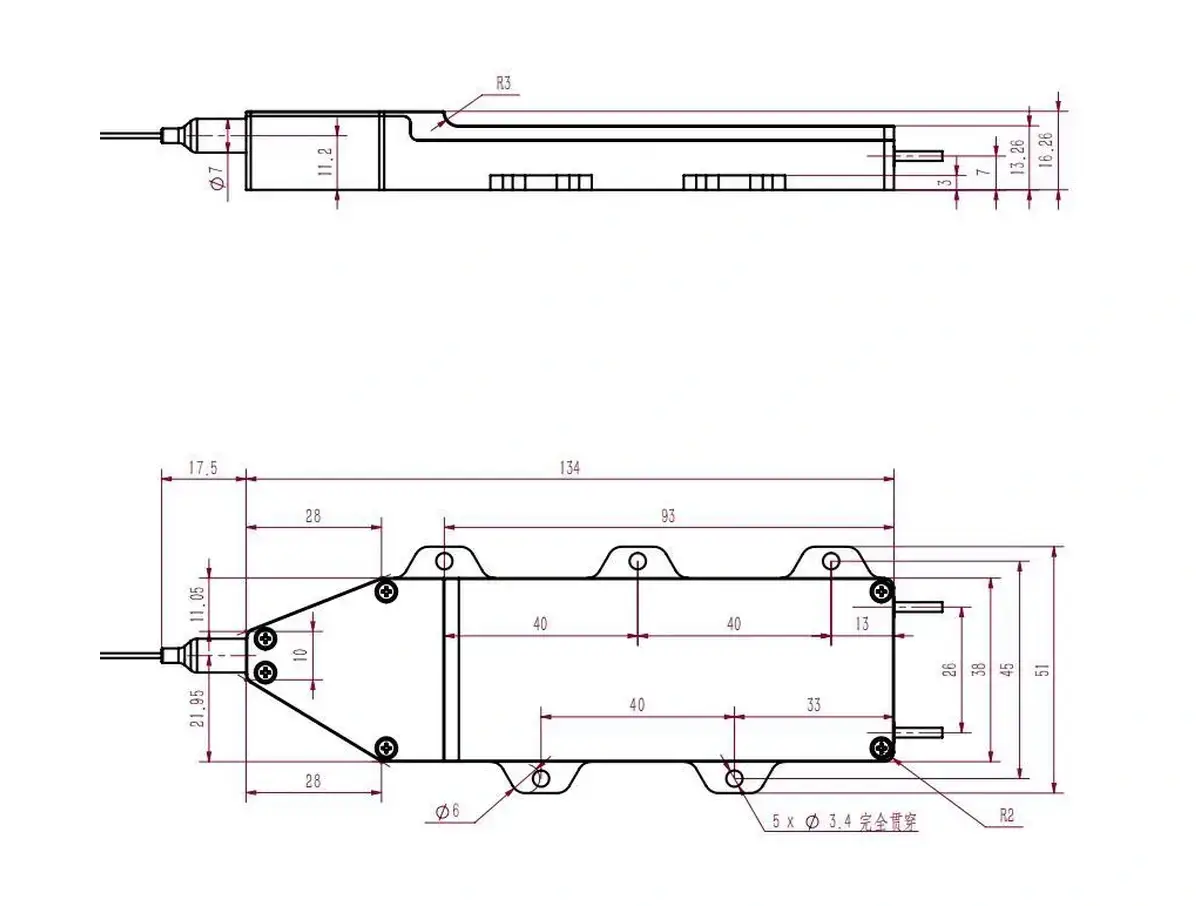

Dimension Drawing

976-LXGX0750

Lumexis Product Code	976-LXGX0750
Nominal Output Power	750 W
Fiber Core Diameter	220 µm
Output Termination	Pigtail output
Product Image

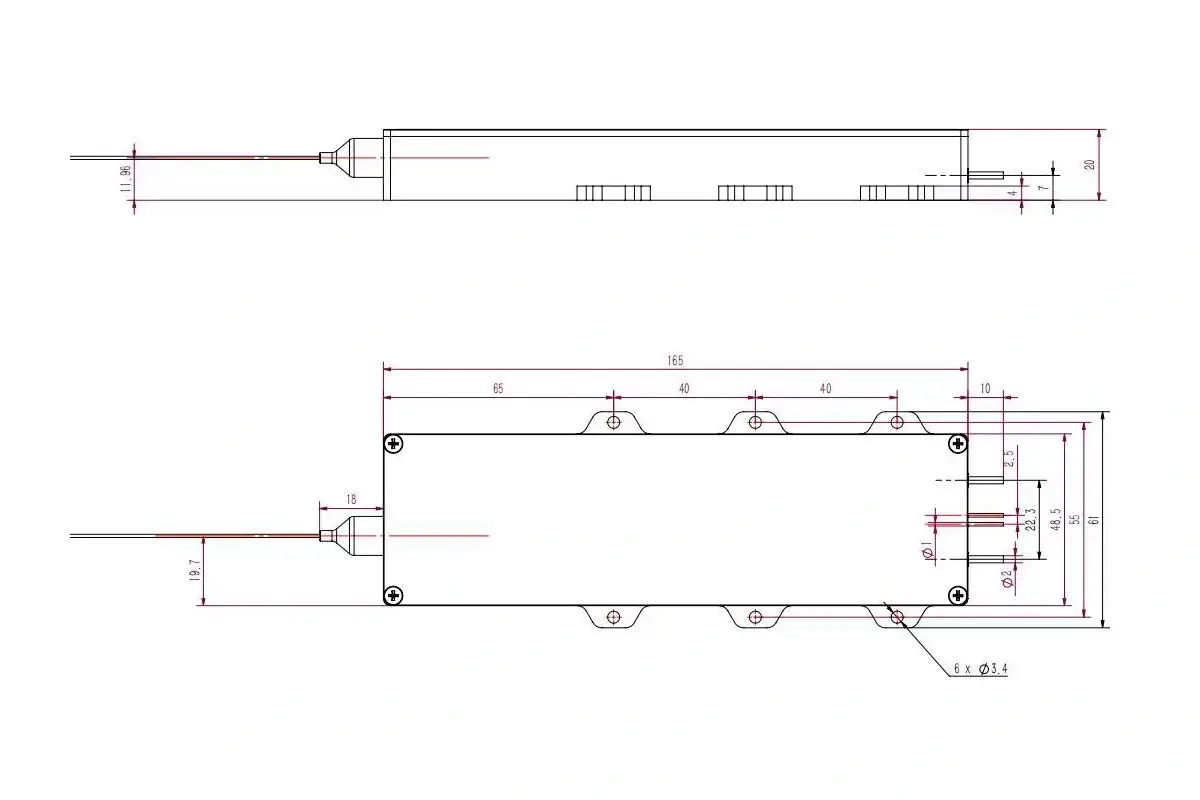

Dimension Drawing

Technical Data

All values are taken from the supplied technical specification sheets. Where a source gives limits and a typical value, cells are labeled Min, Typ, and Max. Blank or unavailable entries are shown as -.

Optical Specifications

Parameter	Unit	976-LXGX0025 25 W 105 µm SMA905	976-LXGX0120 120 W 105 µm Pigtail output	976-LXGX0140 140 W 105 µm Bare-fiber output	976-LXGX0260 Min 260; Typ 270 W 135 µm Pigtail output	976-LXGX0280 280 W Min 132; Typ 135; Max 138 µm SMA905/Pigtail output	976-LXGX0360 Min 355; Typ 360 W Min 196; Typ 200; Max 204 µm SMA905/Pigtail output	976-LXGX0510 510 W 220 µm Pigtail output	976-LXGX0510 510 W 220 µm SMA905/Pigtail output	976-LXGX0750 750 W 220 µm Pigtail output
Output Power	W	25	120	140	Min 260; Typ 270	280	Min 355; Typ 360	510	510	750
Center Wavelength	nm	Min 975.5; Typ 976; Max 976.5	Min 975.5; Typ 976; Max 976.5	Min 975; Typ 976; Max 977	Min 975.5; Typ 976; Max 976.5	Min 973; Typ 976; Max 979	Min 975.1; Typ 976; Max 977.1	Min 975.3; Typ 976; Max 976.7	Min 973; Typ 976; Max 979	Min 973; Typ 976; Max 979
Spectral Width	nm	–	–	1	–	5	1	–	5	–
Spectral Width (FWHM)	nm	0.7	0.8	–	0.8	–	–	1	–	6
Wavelength Locking Range	–	–	Stable wavelength locking at 20-24°C and current ≥5 A; no side lobes or secondary peaks (>20 dB spectrum)	–	Stable wavelength locking at 20-24°C and current ≥10 A; no side lobes or secondary peaks (>20 dB spectrum)	–	–	Wavelength-locking current 25-29 A	–	–
NA within 95% Power	–	–	0.175	0.15	0.175	0.18	0.18	0.2	0.2	0.21
NA within 90% Power	–	Typ 0.12; Max 0.13	–	–	–	–	–	–	–	–
Wavelength Temperature Coefficient	nm/°C	0.015	0.02	0.02	0.02	0.3	0.02	0.02	0.4	0.4
Back-Reflection Isolation Range	nm	–	1030-1200	1020-1200	1030-1200	1030-1200	1030-1200	1030-1200	1030-1200	1030-1200
Power RMS	%	0.4	–	–	–	–	–	–	–	–

Electrical Specifications

Parameter	Unit	976-LXGX0025 25 W 105 µm SMA905	976-LXGX0120 120 W 105 µm Pigtail output	976-LXGX0140 140 W 105 µm Bare-fiber output	976-LXGX0260 Min 260; Typ 270 W 135 µm Pigtail output	976-LXGX0280 280 W Min 132; Typ 135; Max 138 µm SMA905/Pigtail output	976-LXGX0360 Min 355; Typ 360 W Min 196; Typ 200; Max 204 µm SMA905/Pigtail output	976-LXGX0510 510 W 220 µm Pigtail output	976-LXGX0510 510 W 220 µm SMA905/Pigtail output	976-LXGX0750 750 W 220 µm Pigtail output
Operating Current	A	12	14	Typ 13; Max 14	17	Typ 18; Max 20	Typ 25; Max 27	Typ 28; Max 29	Typ 27; Max 28	Typ 30; Max 32
Operating Voltage	V	Typ 4.8; Max 5.5	19.5	Typ 22.4; Max 23.8	32	Typ 29; Max 31	Typ 29; Max 32	Typ 38; Max 40	Typ 38; Max 40	Typ 50; Max 55
Electrical-to-Optical Efficiency	%	43	50	48	50	50	50	Min 48; Typ 50	48	48

Fiber Specifications

Parameter	Unit	976-LXGX0025 25 W 105 µm SMA905	976-LXGX0120 120 W 105 µm Pigtail output	976-LXGX0140 140 W 105 µm Bare-fiber output	976-LXGX0260 Min 260; Typ 270 W 135 µm Pigtail output	976-LXGX0280 280 W Min 132; Typ 135; Max 138 µm SMA905/Pigtail output	976-LXGX0360 Min 355; Typ 360 W Min 196; Typ 200; Max 204 µm SMA905/Pigtail output	976-LXGX0510 510 W 220 µm Pigtail output	976-LXGX0510 510 W 220 µm SMA905/Pigtail output	976-LXGX0750 750 W 220 µm Pigtail output
Fiber Core Diameter	µm	105	105	105	135	Min 132; Typ 135; Max 138	Min 196; Typ 200; Max 204	220	220	220
Fiber Numerical Aperture	–	0.22	0.22	0.22	0.22	0.22	0.22	0.22	0.22	0.22
Fiber Cladding Diameter	µm	125	125	220	155	Typ 155; Max 170	Typ 220; Max 240	242	242	242
Fiber Length	m	1.3	2	2	2	Typ 1.5; Max Customizable	Typ 1.5; Max Customizable	Typ 1.5; Max Customizable	1.5	1.5
Fiber Sheath Diameter	mm	4 (armored)	0.9	0.9	0.9	Typ 0.9; Max Customizable	Typ 0.9; Max Customizable	Typ 0.9; Max Customizable	0.9	0.9
Fiber Output Termination	–	SMA905	Pigtail output	Bare-fiber output	Pigtail output	SMA905/Pigtail output	SMA905/Pigtail output	Pigtail output	SMA905/Pigtail output	Pigtail output

Notes

Photoelectric data are referenced to the test conditions stated in each source specification; most source sheets use 25°C.
Output power, fiber specifications, connector type, and fiber length can be customized where indicated.
Use appropriate electrostatic-discharge protection during transport, storage, and operation.
Clean the fiber end face before use and avoid contamination or damage.
Operate the laser with a constant-current supply and within the rated current, voltage, and power limits.
Provide effective cooling; the source sheets generally recommend a cooling-water temperature of 23-25°C.
Avoid direct eye or skin exposure to laser radiation and follow wavelength-appropriate laser-safety procedures.
Do not bend the fiber sharply; follow the minimum bend-radius guidance in the applicable source specification.
