878.6nm Fiber Coupled Laser

878.6nm Fiber Coupled Laser product image

Overview

The 878.6nm Fiber Coupled Laser series covers 30–270 W of wavelength-locked output for direct in-band Nd:YVO₄ pumping. Pumping straight into the upper laser level cuts the quantum defect and the heat it generates — but the absorption line is narrow, which is why every model here holds ±0.5 nm and 0.015 nm/°C, the tightest wavelength control in our diode range.

  • Power & fiber — 30–270 W across seven models; 200 or 400 µm core, fiber NA 0.22, SMA905 output, 1.5 m lead
  • Spectrum — 878.1–879.1 nm centre, 1 nm FWHM, 0.015 nm/°C temperature drift
  • Wavelength locking — locked from 30% to 100% of rated power
  • Drive & protection — 13–14 A at 5–42 V depending on power, 47–50% electro-optical efficiency, 1030–1200 nm return-light isolation
  • Cooling — conduction cooled; 20–25 °C coolant temperature required

Tell us the application, target power and fiber interface, and we will confirm the matching model and release its full specification.

Used in: laser pumping.

Request Quote

Contact Our Team

Contact Form Demo

Descriptions

This 878.6 nm fiber-coupled diode laser family delivers stable, high-density optical power through a compact, lightweight package. Available wavelength-locked and standard configurations support efficient thermal management, long operating life, and flexible system integration.

Key Features

  • High environmental adaptability
  • Efficient conductive heat dissipation
  • Compact, lightweight package design
  • High power density and stable optical output
  • Long operating life
  • Multiple power, fiber, and termination options
  • Custom configurations available

Applications

  • Solid-state laser pumping
  • Direct semiconductor applications
  • Laser illumination
  • Photoelectric detection
  • Scientific research

Key Parameters by Product Code

Each product image and dimension drawing is paired with the exact model specification shown in the same table. Select the required power, fiber core, and output termination before confirming the mechanical interface.

878.6-LXGX0030

Lumexis Product Code878.6-LXGX0030
Nominal Output Power30 W
Fiber Core Diameter200 µm
Output TerminationSMA905
Product Image878.6-LXGX0030 fiber coupled laser product image
Dimension Drawing878.6-LXGX0030 dimension drawing

878.6-LXGX0035

Lumexis Product Code878.6-LXGX0035
Nominal Output PowerMin 30; Typ 35 W
Fiber Core Diameter200 µm
Output TerminationSMA905
Product Image878.6-LXGX0035 fiber coupled laser product image

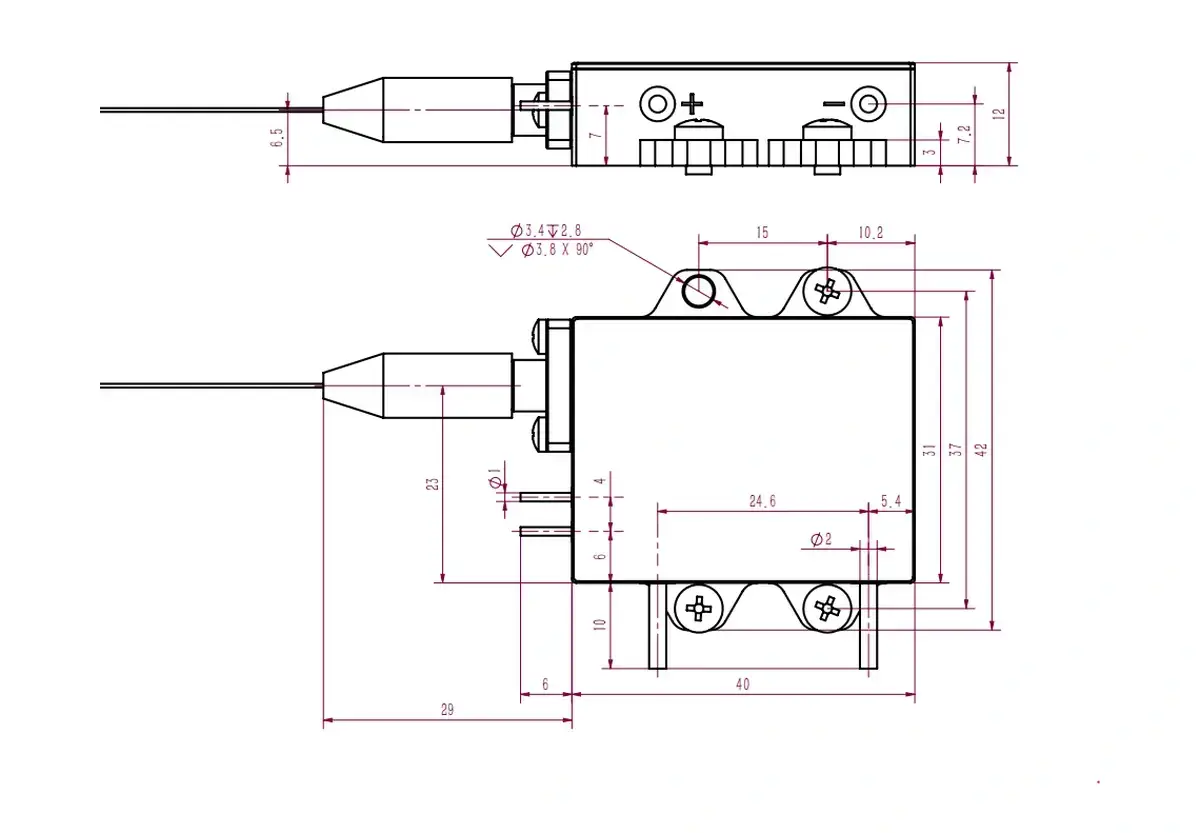

Dimension Drawing878.6-LXGX0035 dimension drawing

878.6-LXGX0065

Lumexis Product Code878.6-LXGX0065
Nominal Output Power65 W
Fiber Core Diameter200 µm
Output TerminationSMA905
Product Image878.6-LXGX0065 fiber coupled laser product image

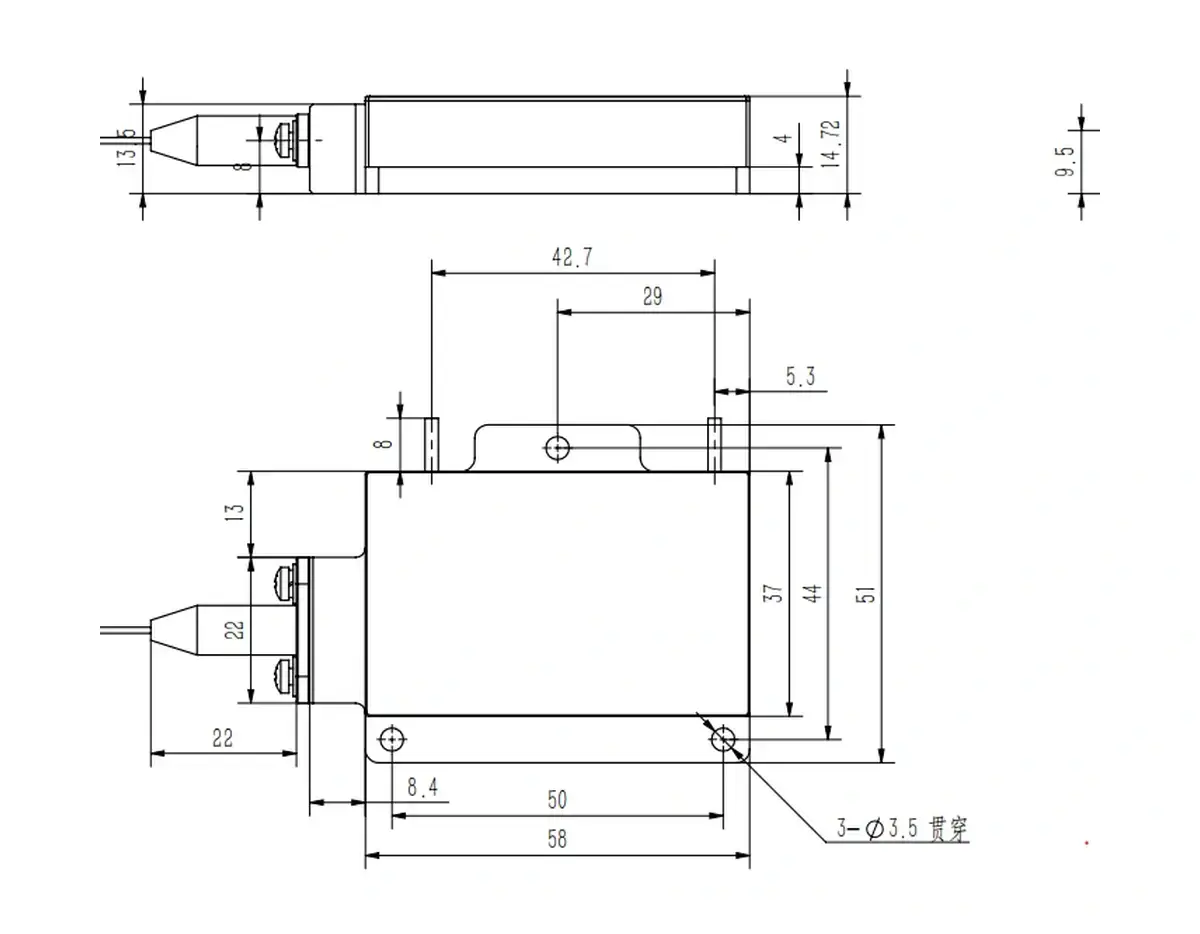

Dimension Drawing878.6-LXGX0065 dimension drawing

878.6-LXGX0090

Lumexis Product Code878.6-LXGX0090
Nominal Output Power90 W
Fiber Core Diameter200 µm
Output TerminationSMA905
Product Image878.6-LXGX0090 fiber coupled laser product image

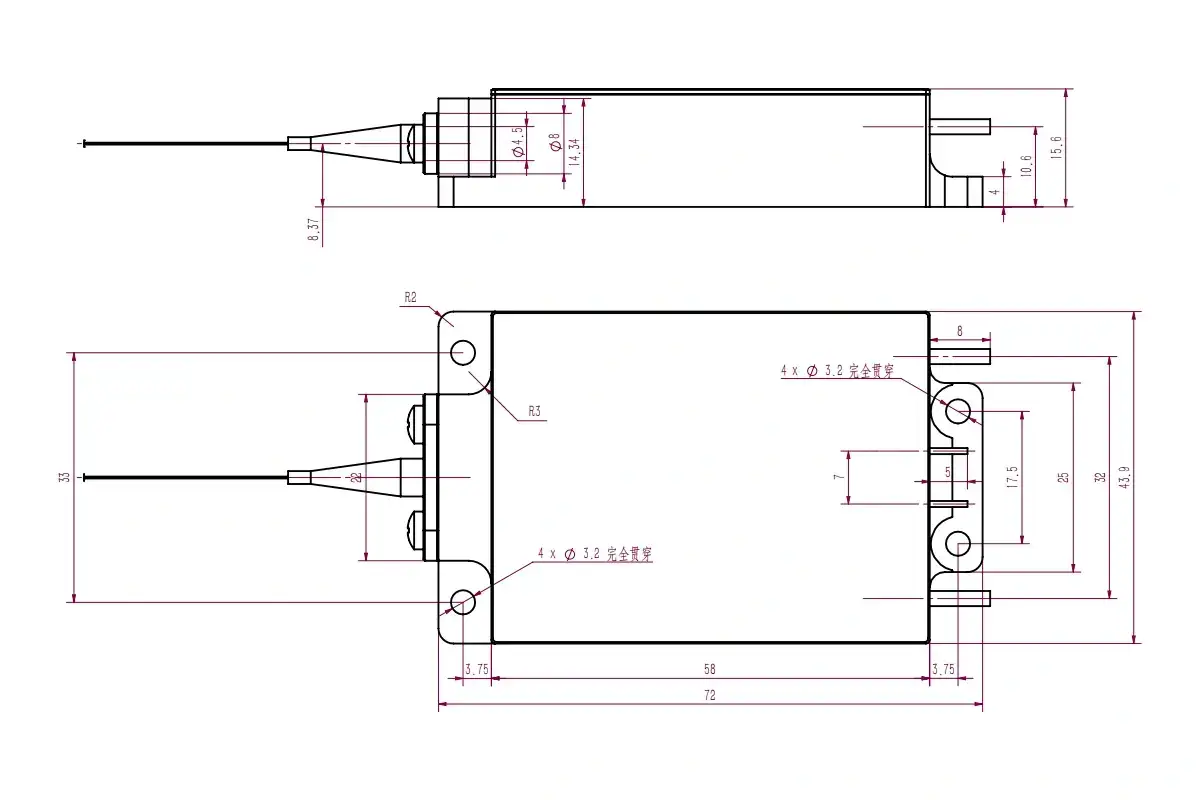

Dimension Drawing878.6-LXGX0090 dimension drawing

878.6-LXGX0120

Lumexis Product Code878.6-LXGX0120
Nominal Output Power120 W
Fiber Core Diameter200 µm
Output TerminationSMA905
Product Image878.6-LXGX0120 configuration 1 fiber coupled laser product image

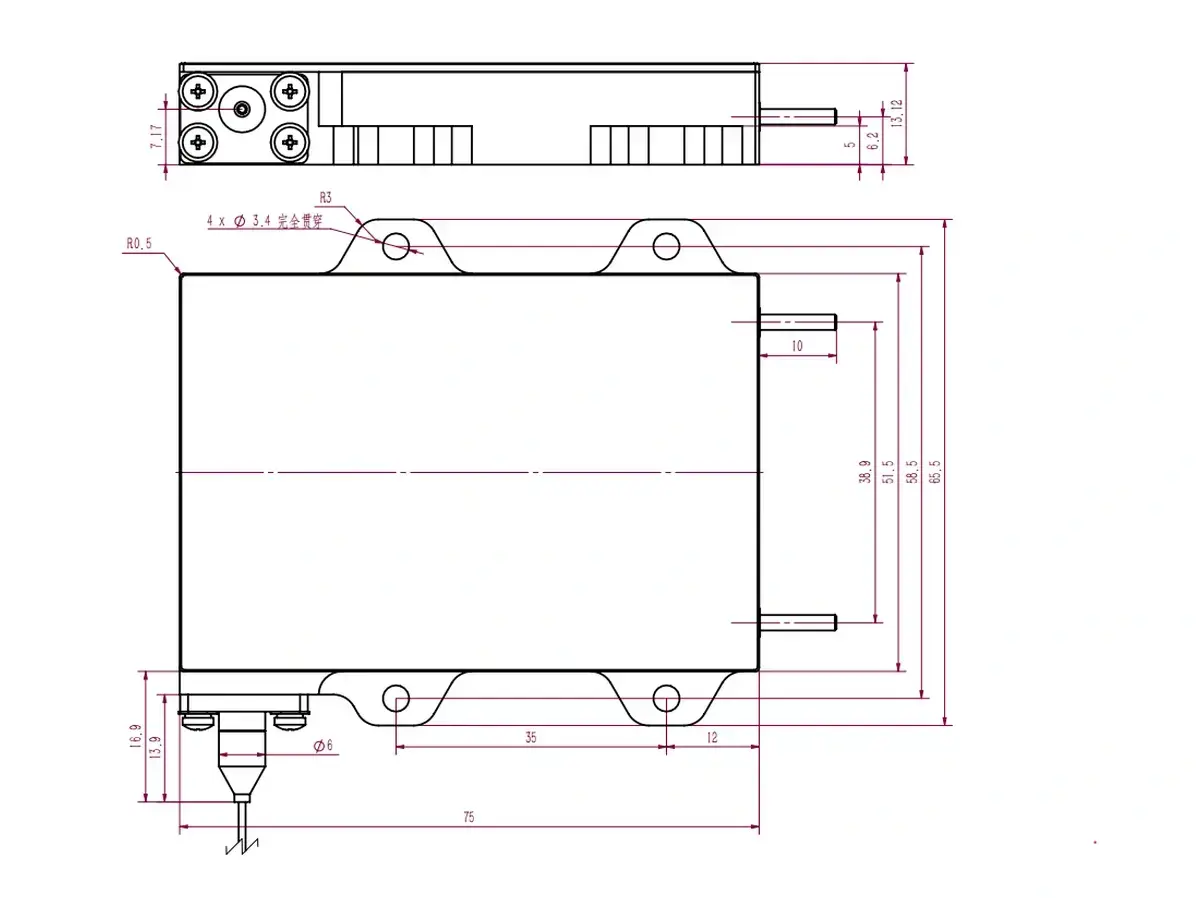

Dimension Drawing878.6-LXGX0120 configuration 1 dimension drawing

878.6-LXGX0120

Lumexis Product Code878.6-LXGX0120
Nominal Output Power120 W
Fiber Core Diameter400 µm
Output TerminationSMA905
Product Image878.6-LXGX0120 configuration 2 fiber coupled laser product image
Dimension Drawing878.6-LXGX0120 configuration 2 dimension drawing

878.6-LXGX0175

Lumexis Product Code878.6-LXGX0175
Nominal Output Power175 W
Fiber Core Diameter200 µm
Output TerminationSMA905
Product Image878.6-LXGX0175 fiber coupled laser product image
Dimension Drawing878.6-LXGX0175 dimension drawing

878.6-LXGX0270

Lumexis Product Code878.6-LXGX0270
Nominal Output Power270 W
Fiber Core Diameter200 µm
Output TerminationSMA905
Product Image878.6-LXGX0270 fiber coupled laser product image

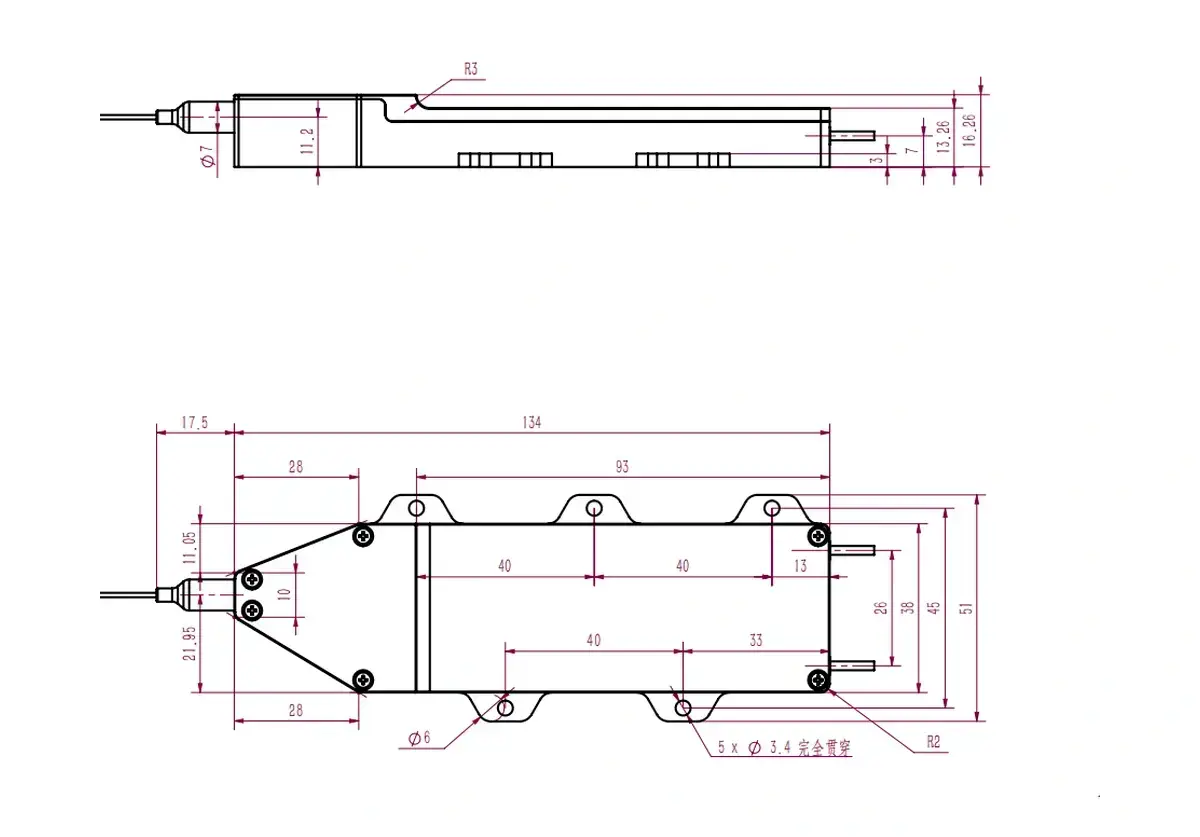

Dimension Drawing878.6-LXGX0270 dimension drawing

Technical Data

All values are taken from the supplied technical specification sheets. Where a source gives limits and a typical value, cells are labeled Min, Typ, and Max. Blank or unavailable entries are shown as -.

Optical Specifications

ParameterUnit878.6-LXGX0030
30 W
200 µm
SMA905		878.6-LXGX0035
Min 30; Typ 35 W
200 µm
SMA905		878.6-LXGX0065
65 W
200 µm
SMA905		878.6-LXGX0090
90 W
200 µm
SMA905		878.6-LXGX0120
120 W
200 µm
SMA905		878.6-LXGX0120
120 W
400 µm
SMA905		878.6-LXGX0175
175 W
200 µm
SMA905		878.6-LXGX0270
270 W
200 µm
SMA905
Output PowerW30Min 30; Typ 3565–120120175270
Output Power at 25°CW–––90––––
Center WavelengthnmMin 878.1; Typ 878.6; Max 879.1Min 878.1; Typ 878.6; Max 879.1Min 878.1; Typ 878.6; Max 879.1Min 878.1; Typ 878.6; Max 879.1Min 878.1; Typ 878.6; Max 879.1Min 878.1; Typ 878.6; Max 879.1Min 878.1; Typ 878.6; Max 879.1Min 878.1; Typ 878.6; Max 879.1
Spectral Widthnm––1–1111
Spectral Width (FWHM)nm11–1––––
Wavelength Locking Rangenmat 30%-100% powerat 30%-100% power/: at 30%-100% powerat 30%-100% powerat 30%-100% powerat 30%-100% powerat 30%-100% powerat 30%-100% power
NA within 95% Power–0.140.140.170.20.170.170.180.2
Wavelength Temperature Coefficientnm/°C0.0150.020.0150.0150.0150.0150.0150.015
Back-Reflection Isolation Rangenm1030-12001030-12001030-12001030-12001030-12001030-12001030-12001030-1200

Electrical Specifications

ParameterUnit878.6-LXGX0030
30 W
200 µm
SMA905		878.6-LXGX0035
Min 30; Typ 35 W
200 µm
SMA905		878.6-LXGX0065
65 W
200 µm
SMA905		878.6-LXGX0090
90 W
200 µm
SMA905		878.6-LXGX0120
120 W
200 µm
SMA905		878.6-LXGX0120
120 W
400 µm
SMA905		878.6-LXGX0175
175 W
200 µm
SMA905		878.6-LXGX0270
270 W
200 µm
SMA905
Operating CurrentATyp 13; Max 14Typ 13; Max 14Typ 13; Max 14Typ 13; Max 14Typ 13; Max 14Typ 13; Max 14Typ 13; Max 14Typ 13; Max 14
Operating VoltageVTyp 5; Max 6Typ 5; Max 6Typ 10; Max 12Typ 15; Max 17Typ 20; Max 22Typ 22; Max 24Typ 30; Max 32Typ 40.5; Max 42
Electrical-to-Optical Efficiency%Min 47; Typ 50Min 47; Typ 50Min 47; Typ 50Min 47; Typ 50Min 47; Typ 50Min 47; Typ 50Min 47; Typ 50Min 47; Typ 50

Fiber Specifications

ParameterUnit878.6-LXGX0030
30 W
200 µm
SMA905		878.6-LXGX0035
Min 30; Typ 35 W
200 µm
SMA905		878.6-LXGX0065
65 W
200 µm
SMA905		878.6-LXGX0090
90 W
200 µm
SMA905		878.6-LXGX0120
120 W
200 µm
SMA905		878.6-LXGX0120
120 W
400 µm
SMA905		878.6-LXGX0175
175 W
200 µm
SMA905		878.6-LXGX0270
270 W
200 µm
SMA905
Fiber Core Diameterµm200200200200200400200200
Fiber Numerical Aperture–0.220.220.220.220.220.220.220.22
Fiber Cladding Diameterµm220220220220220440220220
Fiber Lengthm1.51.51.51.51.51.51.51.5
Fiber Sheath Diametermm0.90.90.90.90.90.90.90.9
Fiber Output Termination–SMA905SMA905SMA905SMA905SMA905SMA905SMA905SMA905

Notes

  • Photoelectric data are referenced to the test conditions stated in each source specification; most source sheets use 25°C.
  • Output power, fiber specifications, connector type, and fiber length can be customized where indicated.
  • Use appropriate electrostatic-discharge protection during transport, storage, and operation.
  • Clean the fiber end face before use and avoid contamination or damage.
  • Operate the laser with a constant-current supply and within the rated current, voltage, and power limits.
  • Provide effective cooling; the source sheets generally recommend a cooling-water temperature of 23-25°C.
  • Avoid direct eye or skin exposure to laser radiation and follow wavelength-appropriate laser-safety procedures.
  • Do not bend the fiber sharply; follow the minimum bend-radius guidance in the applicable source specification.
